2W Deck (2" W Profile Composite Floor Deck)

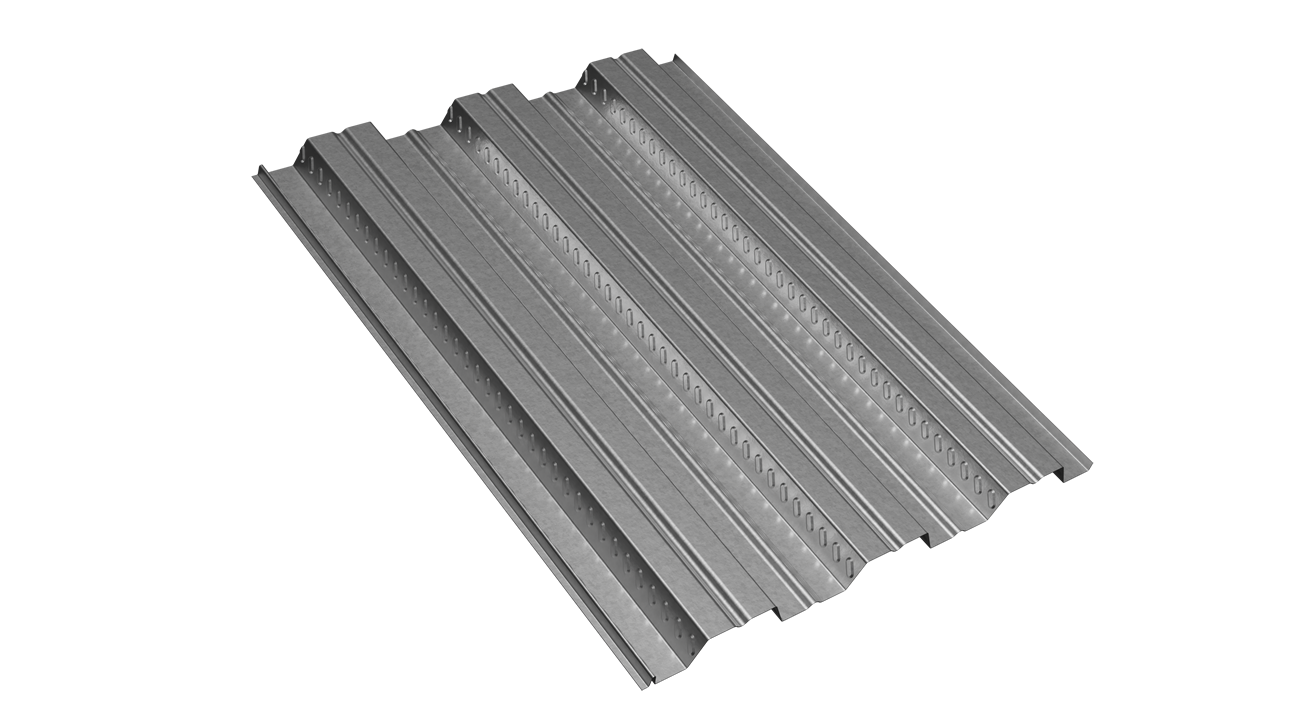

Composite 2W Floor Deck (2″ W Profile Composite Floor Deck) is a 36″ net coverage structural decking product. Light-gauge steel floor deck provides a form during construction and a positive reinforcement of the concrete slab once cured. This provides both vertical load capacities and diaphragm shear capacities.

Composite 2W Deck features ASC Steel Deck’s Hi Form^® embossment pattern that provides a mechanical bond between decking and the concrete (composite action). It is commonly used in office, educational, and retail applications.

Listing Standards

Independently evaluated for conformance with the International Building Code by IAPMO-ES (accredited by ANSI)
Evaluated for fire resistance per UL 263 Fire Tests
Section properties are calculated in accordance with the American Iron and Steel Institute Specification for the Design of Cold-Formed Steel Structural Members, AISI S100-2016 (with 2020 supplement)

Product Information

Available Length: 3'6" to 45'0"
Optimal Span: 7'-12'
Steel: 16-22Ga (50ksi)
Galvanized Options (per ASTM A643): G40, G60 (standard), G90
Finish Options (per ASTM 10081): Bare, Prime Shield® (Prime Painted White or Gray)
Venting*: Available By Request
Die Set (Swedge)**: Available By Request
Cellular Option: Yes
Acustadek^® Option: Pan Perforated Cellular only

_{*Venting refers to upward protruding vent tabs factory punched in the low flutes of the steel deck to improve concrete drying time.}

_{** Die set ends allow for the roof deck to be easily end tapped to increase the diaphragm stiffness}

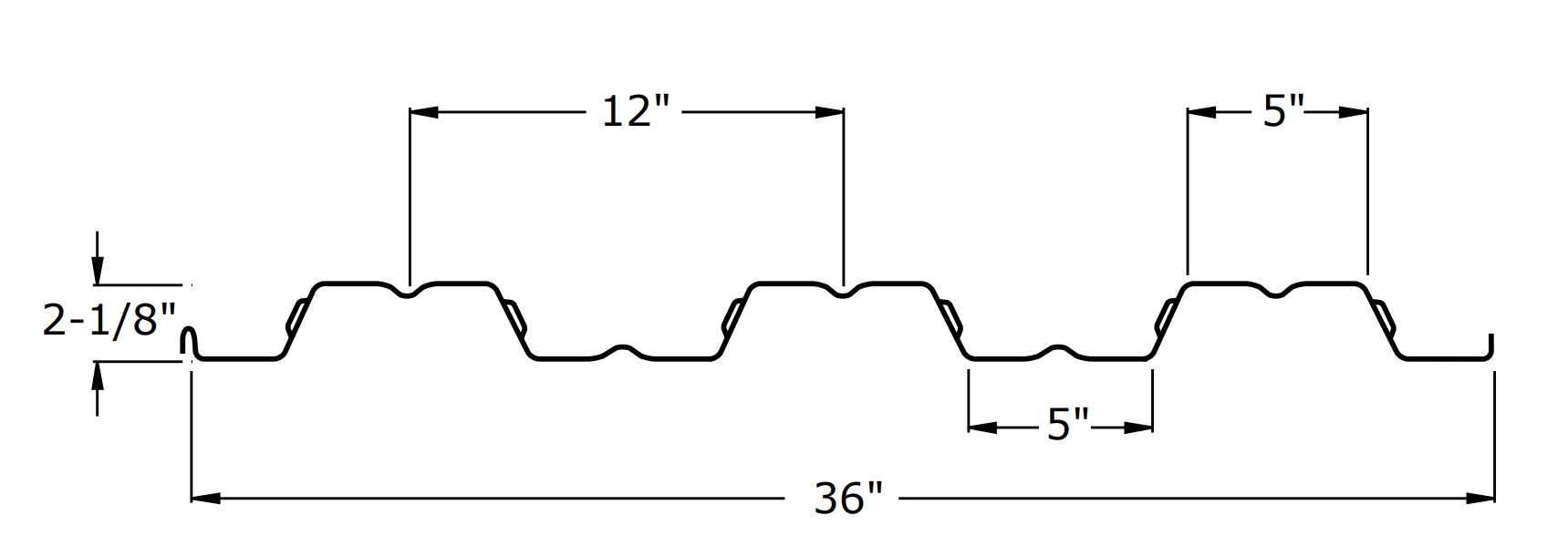

2W Deck (2" W Profile Composite Floor Deck) Panel Dimensions

ENLARGE

Available Configurations

2WH-36 by ASC Steel Deck on Sketchfab

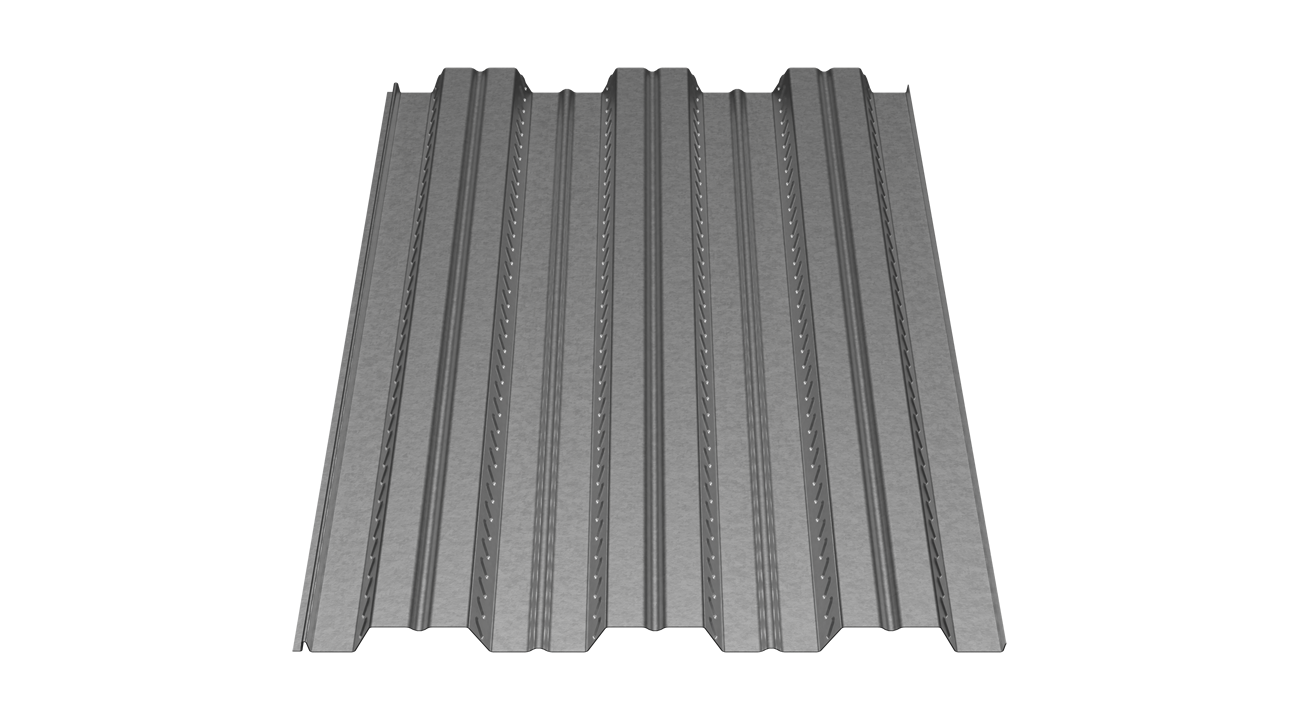

2" composite 2W Deck profile with a standard interlocking sidelap (standing seam). The common side seam attachment systems are the Triple Floor Connection™, traditional button punch or top seam welds.
