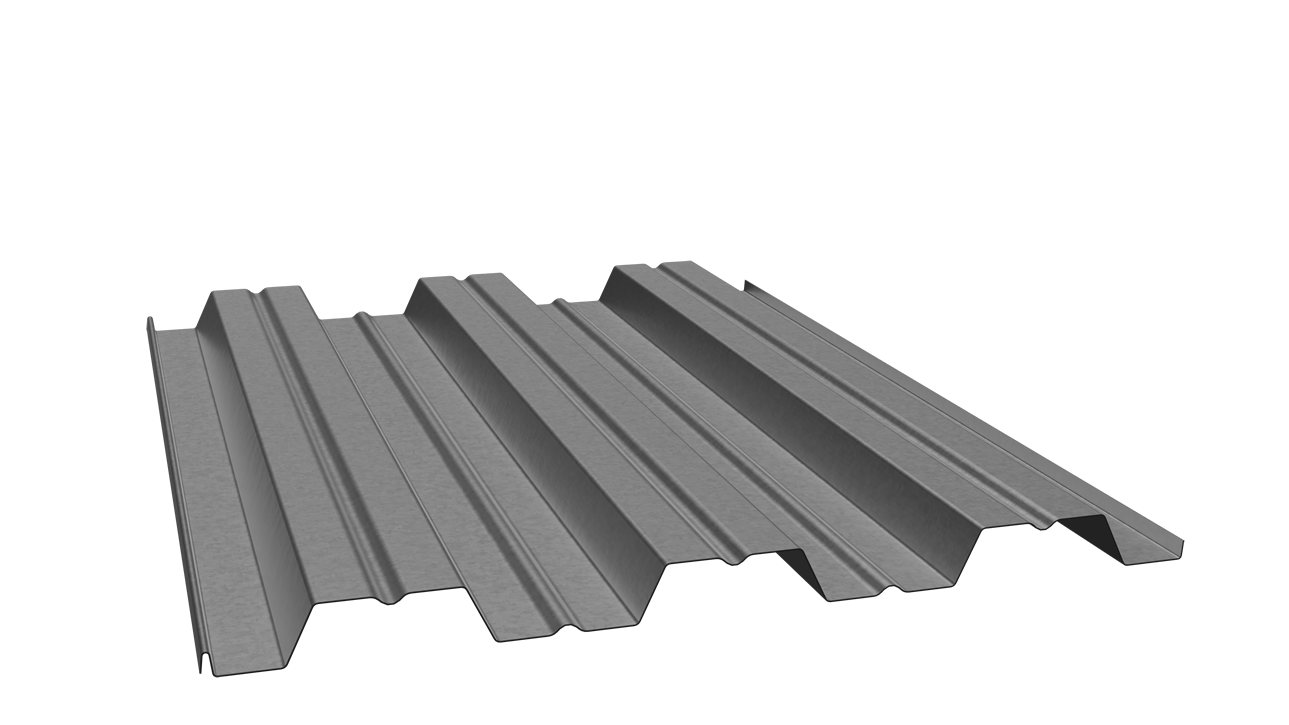

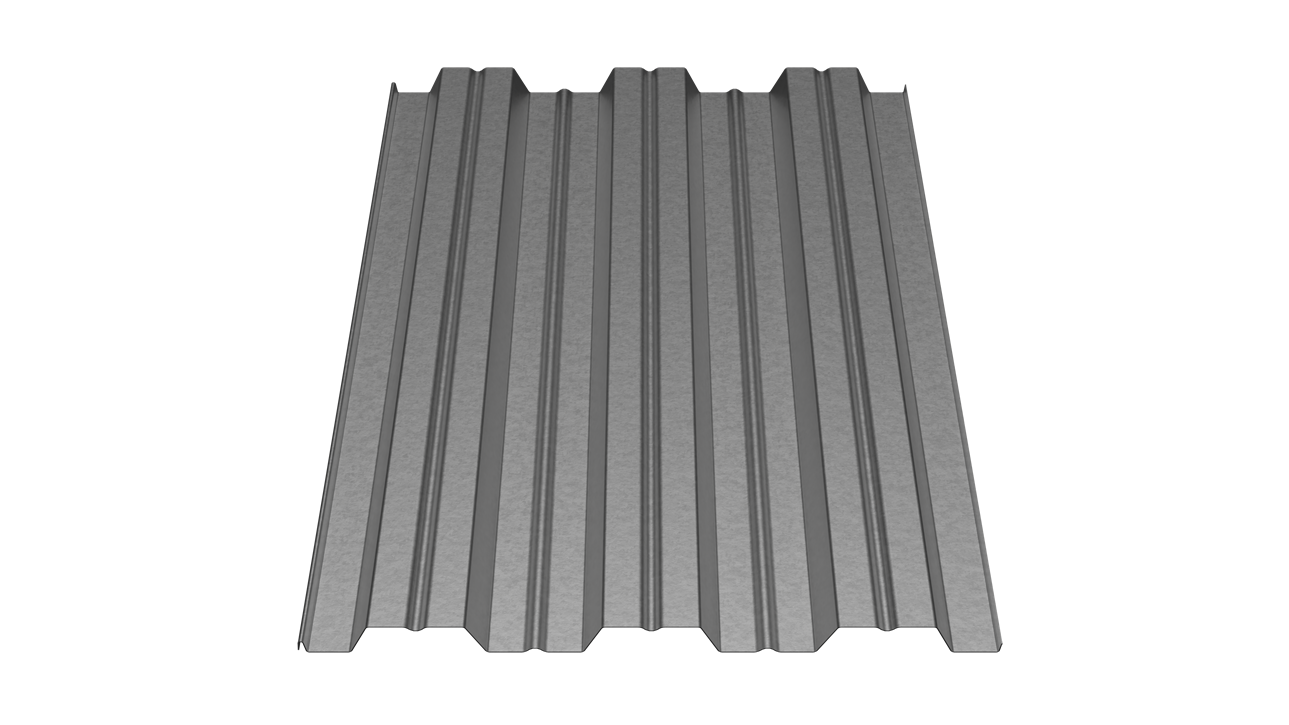

2W Deck (2" W Profile Roof Deck)

2W Roof Deck (2″ W Profile Roof Deck) is a 36″ net coverage structural decking product. Roof deck is the structural substrate for the roof water proofing membrane and acts as a structural element resisting both vertical and lateral (horizontal) loads. Available with an interlocking side lap for DeltaGrip^® DG4™ installations.

The Delta Grip system is an innovative pneumatic side lap attachment tool that increases installation ease and speed. This system provides high diaphragm shear capacities similar to top seam weld installations, but with the cost equivalent of button punching.

Listing Standards

Independently evaluated for conformance with the International Building Code by IAPMO-ES (accredited by ANSI)
Evaluated for fire resistance per UL 263 Fire Tests
Section properties are calculated in accordance with the American Iron and Steel Institute Specification for the Design of Cold-Formed Steel Structural Members, AISI S100-2016 (with 2020 supplement)

Product Information

Available Length: 3'6" to 45'0"
Optimal Span: 8'-14'
Steel: 16-22Ga (50ksi)
Galvanized Options (per ASTM A643): G40, G60 (standard), G90
Finish Options (per ASTM 10081): Bare, Prime Shield® (Prime Painted White or Gray)
Venting*: Available By Request
Die Set (Swedge)**: Available By Request
Cellular Option: Yes
Acustadek® Option: Pan Perforated Cellular only

_{*Venting refers to upward protruding vent tabs factory punched in the low flutes of the steel deck to improve concrete drying time.}

_{** Die set ends allow for the roof deck to be easily end tapped to increase the diaphragm stiffness}

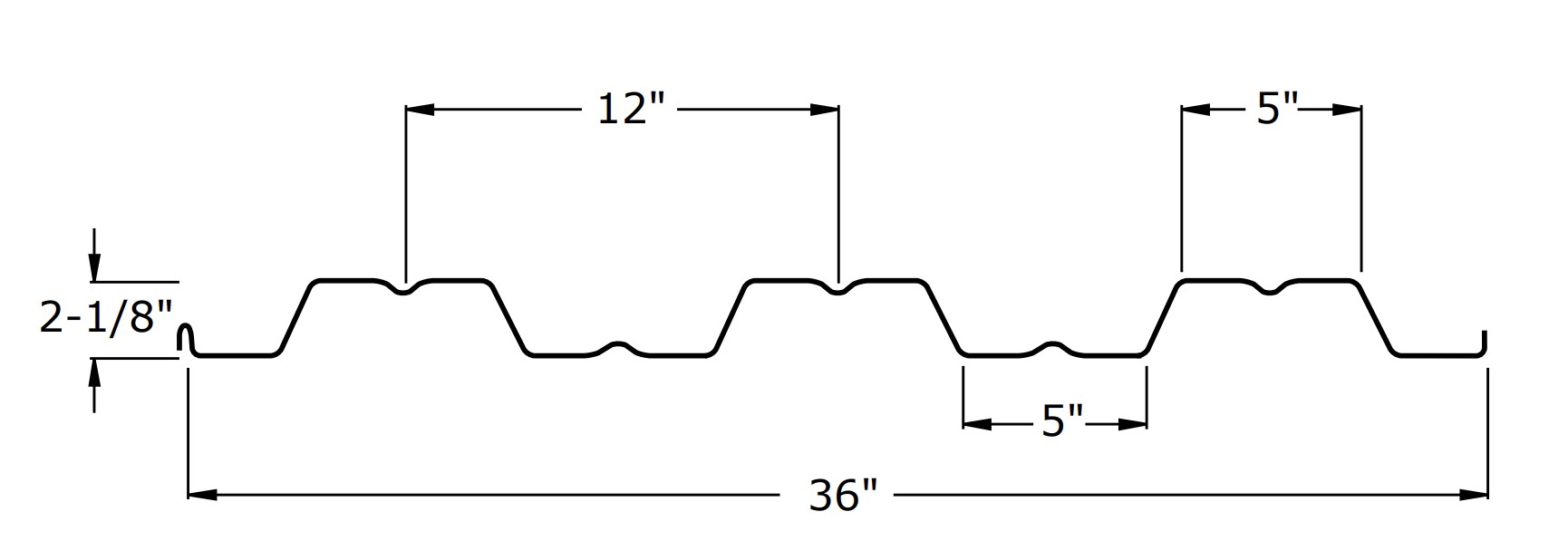

2W Deck (2" W Profile Roof Deck) Panel Dimensions

ENLARGE

Available Configurations

DG2WH-36 Roof-Non-Embossed by ASC Steel Deck on Sketchfab

2" 2W roof deck profile with a standard interlocking sidelap. For use with ASC Steel Deck's innovative Delta Grip DG4 system that provides higher connection strength and stiffness while increasing installation speed. Can also be installed using traditional button punch or top seam weld.
