B Deck (1.5" Composite Floor Deck)

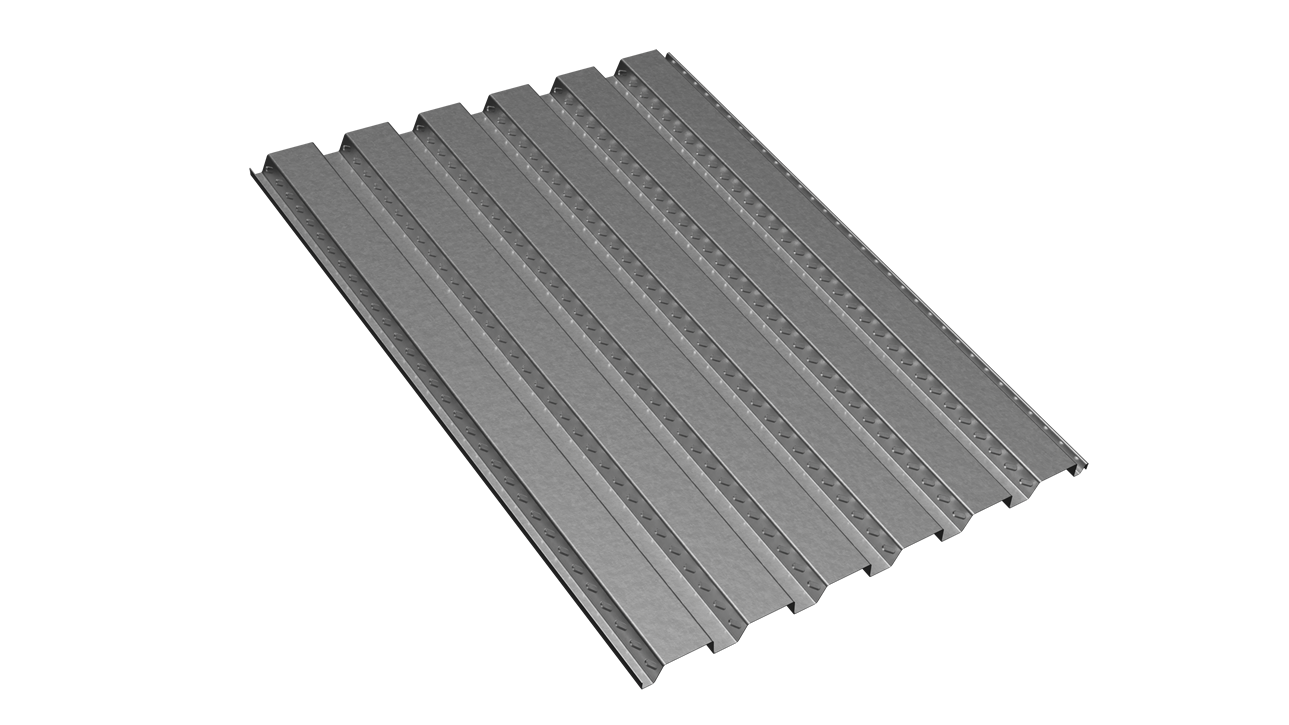

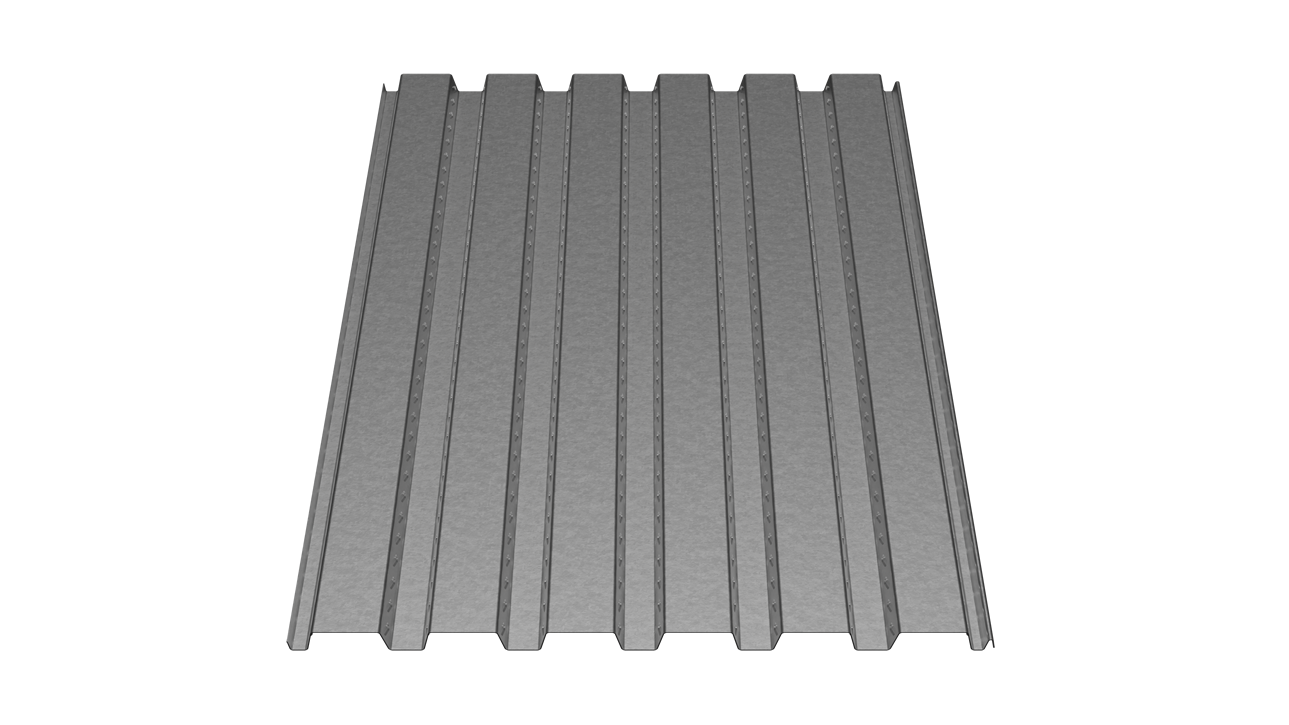

Composite B Deck (1.5″ Composite Floor Deck) is a 36″ net coverage structural decking product. Light-gauge steel floor deck provides a form during construction and a positive reinforcement of the concrete slab once cured. This provides both vertical load capacities and diaphragm shear capacities.

Composite B Deck features ASC Steel Deck’s Hi Form® embossment pattern that optimizes the mechanical bond between decking and the concrete (composite action). B Deck offers the lowest composite deck-slab weight per square foot for the specified concrete thickness above the deck. It is commonly used in office, educational, and retail applications.

Listing Standards

Independently evaluated for conformance with the International Building Code by IAPMO-ES (accredited by ANSI)
Evaluated for fire resistance per UL 263 Fire Tests
Section properties are calculated in accordance with the American Iron and Steel Institute Specification for the Design of Cold-Formed Steel Structural Members, AISI S100-2016 (with 2020 supplement)

Product Information

Available Length: 3'6" to 45'0"
Optimal Span: 7’-10’
Steel: 16-22Ga (50ksi)
Galvanized Options (per ASTM A643): G40, G60 (standard), G90
Finish Options (per ASTM 10081): Bare, Prime Shield® (Prime Painted White or Gray)
Venting*: Available By Request
Die Set (Swedge)**: Available By Request
Cellular Option: Yes
Acustadek^® Option: Pan Perforated Cellular only

_{*Venting refers to upward protruding vent tabs factory punched in the low flutes of the steel deck to improve concrete drying time.}

_{** Die set ends allow for the roof deck to be easily end tapped to increase the diaphragm stiffness}

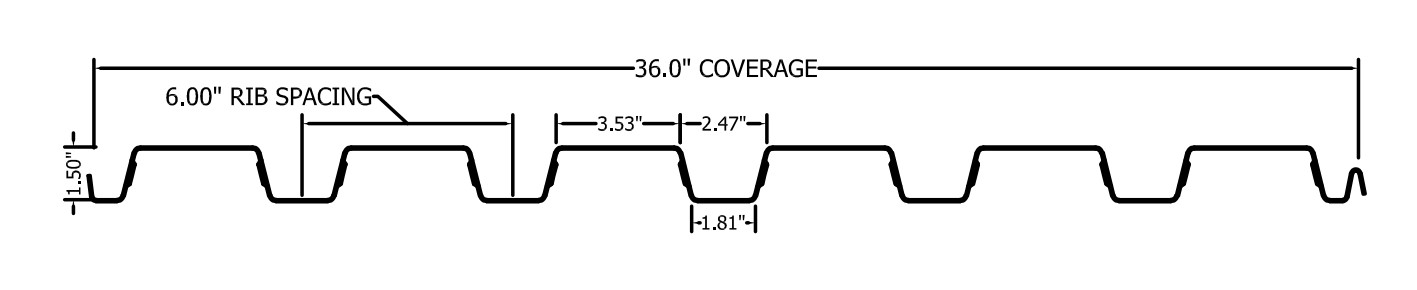

B Deck (1.5" Composite Floor Deck) Panel Dimensions

B Deck (1.5 Composite Floor Deck) Measurements — ENLARGE

Available Configurations

BH-36 by ASC Steel Deck on Sketchfab

1.5" composite B Deck profile with a standard interlocking sidelap (standing seam). The common side seam attachment systems are the Triple Floor Connection™, traditional button punch, or top seam welds.

Resources:

BHS-36 by ASC Steel Deck on Sketchfab

1.5" composite B Deck profile with a screwable side lap interlock designed to be attached with self-drilling screws.

Resources:

BHN-36 by ASC Steel Deck on Sketchfab

1.5" composite B Deck profile designed to be attached with self-drilling screws where the panels nest.

Resources:

BHN-36R by ASC Steel Deck on Sketchfab

Inverted 1.5" composite B Deck profile with a nestable side lap. Inverted deck is utilized for specialty aesthetic or building load requirements (expands optimal span to 7-12')
