Cellular Deck

Cellular Deck provides an aesthetically pleasing smooth underside appearance for exposed deck installations. It is achieved by attaching a separate flat pan to the underside of the deck profile. This smooth underside may also be desirable for environments seeking an easier-to-clean flat surface. As this only features a flat pan without perforation and insulation, Cellular Deck does not offer any acoustical properties – please see Cellular Acustadek® for cellular decking with sound absorption properties.

Cellular Deck features ASC Steel Deck’s innovative Smooth Series™ pan attachment. Smooth Series is an architecturally exposed cellular deck that attaches the pan with rivets, creating a clean deck to pan connection. The riveted attachment replaces the traditional welded attachment process with aesthetically pleasing riveted attachments. This eliminates the need for field labor to touch-up burn marks associated with welded attachments.

Cellular Deck is available across various ASC Steel Deck profiles including B Deck, N Deck, 2W and 3W Deck and available in galvanized finish, gray and white factory applied bottom side primer (Prime Shield) finishes.

Get Started With Our Design Tool

Available Configurations

DGBHF-36A by ASC Steel Deck on Sketchfab

ASC Steel Deck's B Deck profile (36" coverage) with a separate, flat pan underside. For installation with ASC Steel Deck's Delta Grip DG4 system, standard button punch, or top seam welds. Available as a welded pan and beam attachment or an architecturally pleasing attachment. Key configurations include:

  • DGBF-36 – Delta Grip DG4 Attachment Cellular B Roof Deck (DGBFr-36 if riveted)
  • BF-36 - Standard Attachment Cellular B Roof Deck (BFr-36 if riveted)
  • DGBHF-36 – Delta Grip DG4 Attachment Cellular Composite B Deck (Floor Deck)(DGBFr-36 if riveted)
  • BHF-36 – Standard Attachment Cellular Composite B Deck (Floor Deck)(BHFr-36 if riveted)

Beam (structural deck profile) and Pan available in separate steel gauges. Beam available in 18 and 20 Ga, Pan 16, 18, and 20 Ga. Pan and Beam supplied in G90 galvanized. Pan is available in prime painted white or gray (Prime Shield).

Resources:

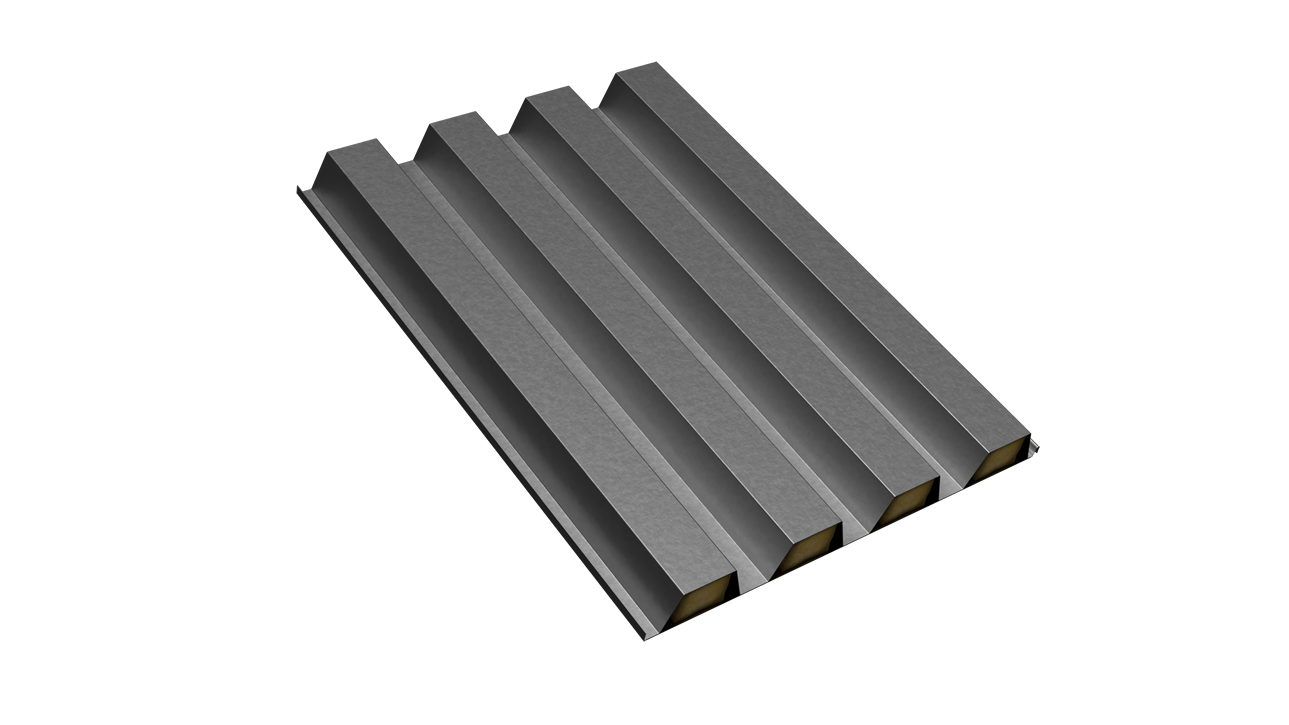

NF-32 by ASC Steel Deck on Sketchfab

ASC Steel Deck's N Deck profile (32" coverage) with a separate, flat pan underside. For installation with ASC Steel Deck's Delta Grip DG4 system, standard button punch, or top seam welds. Available as a welded pan and beam attachment or an architecturally pleasing Smooth Series (riveted) attachment. Key configurations include:

  • DGNF-32 – Delta Grip DG4 Attachment Cellular N Roof Deck (DGNFr-32 if riveted)
  • NF-32 - Standard Attachment Cellular N Roof Deck (NFr-32 if riveted)
  • DGNHF-32 – Delta Grip DG4 Attachment Cellular Composite N Deck (Floor Deck)(DGNFr-32 if riveted)
  • NHF-32 – Standard Attachment Cellular Composite N Deck (Floor Deck)(NHFr-32 if riveted)

Beam (structural deck profile) and Pan available in separate steel gauges. Beam available in 18 and 20 Ga, Pan 16, 18, and 20 Ga. Pan and Beam supplied in G90 galvanized. Pan is available in prime painted white or gray (Prime Shield).

Resources:

2WHF-36 Roof-Non-Embossed by ASC Steel Deck on Sketchfab

ASC Steel Deck's 2W Deck profile (36" coverage) with a separate, flat pan underside. For installation with ASC Steel Deck's Delta Grip DG4 system, standard button punch or top seam welds. Available as a welded pan and beam attachment or an architecturally pleasing Smooth Series (riveted) attachment. Key configurations include:

  • DG2WHF-36 – Delta Grip DG4 Attachment Cellular Composite 2W Deck (Floor Deck)(DG2WHFr-36 if riveted)
  • 2WHF-36 – Standard Attachment Cellular Composite 2W Deck (Floor Deck)(2WHFr-36 if riveted)

Beam (structural deck profile) and Pan available in separate steel gauges. Pan and Beam available in 16 - 20 Ga. Pan and Beam supplied in G90 galvanized. Pan is available in prime painted white or gray (Prime Shield).

Resources:

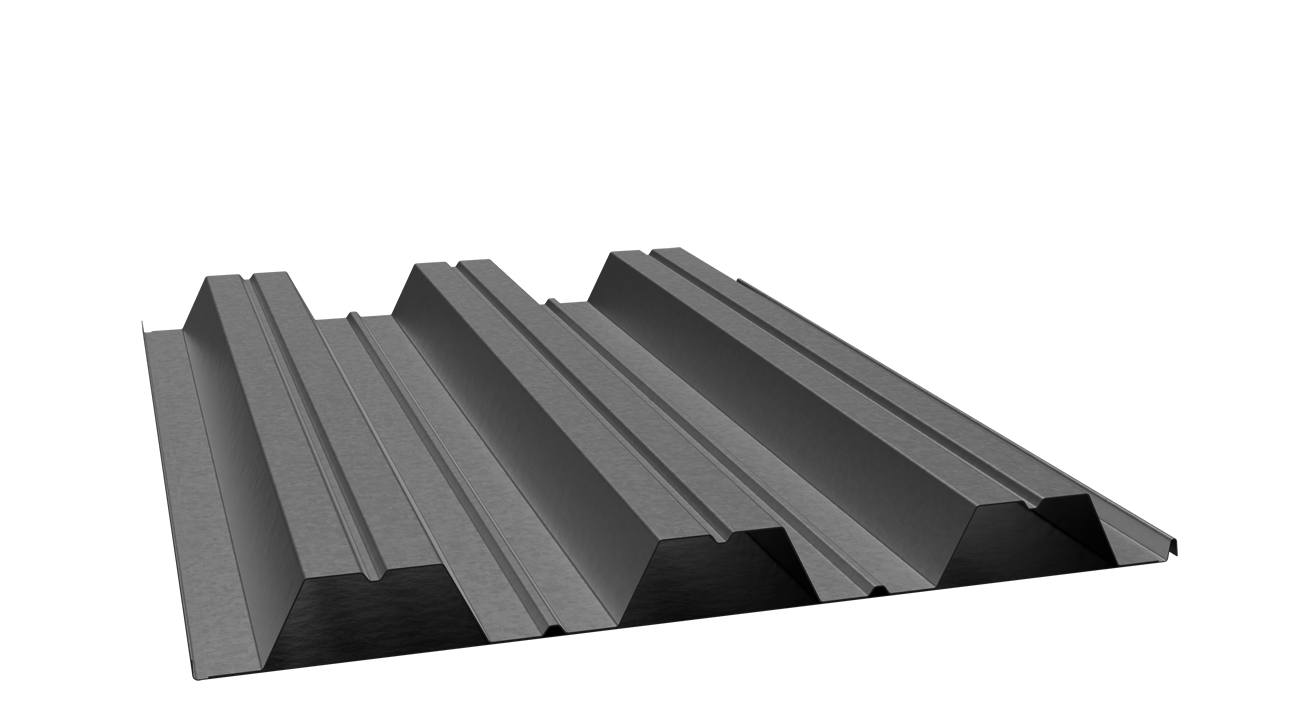

DG3WxHF-36 Roof-Non-Embossed by ASC Steel Deck on Sketchfab

ASC Steel Deck's 3W Deck profile (36" coverage) with a separate, flat pan underside. For installation with ASC Steel Deck's Delta Grip DG4 system, standard button punch or top seam welds. Available as a welded pan and beam attachment or an architecturally pleasing Smooth Series (riveted) attachment. Key configurations include:

  • DG3WHF-36 – Delta Grip DG4 Attachment Cellular Composite 3W Deck (Floor Deck)(DG2WHFr-36A if riveted)
  • 3WHF-36 – Standard Attachment Cellular Composite 3W Deck (Floor Deck)(2WHFr-36A if riveted)

Beam (profiled deck) and Pan are available in separate steel gauges. Pan and Beam available in 16 - 20 Ga. Pan and Beam supplied in G90 galvanized. Pan is available in prime painted white or gray (Prime Shield).

Resources:

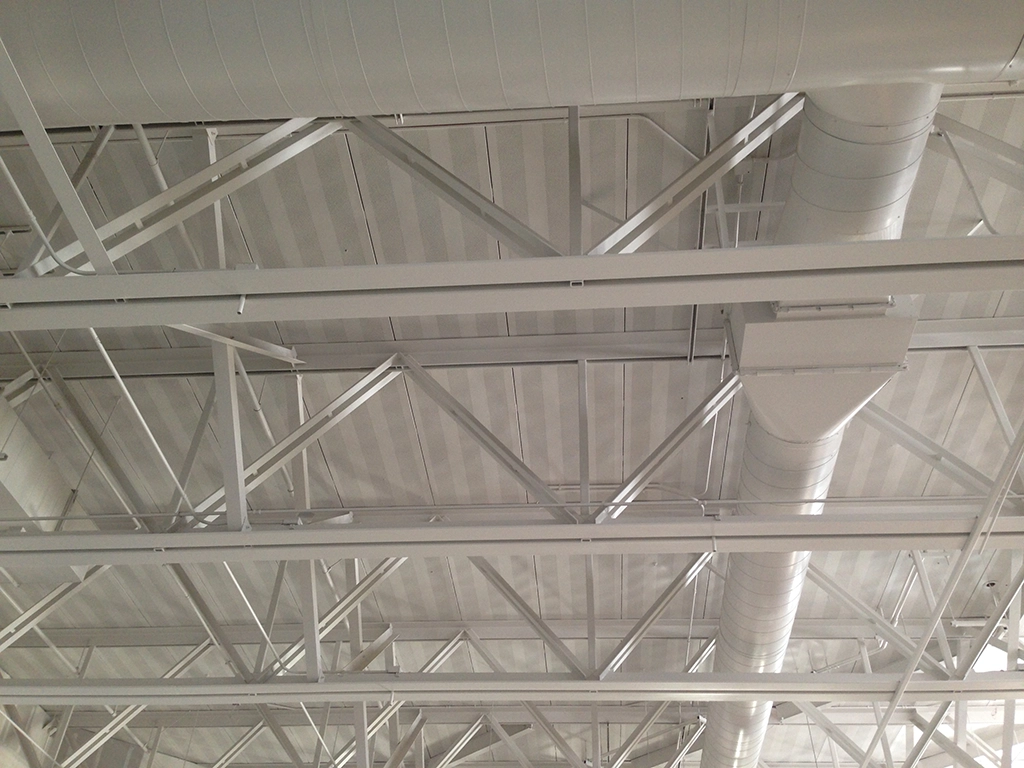

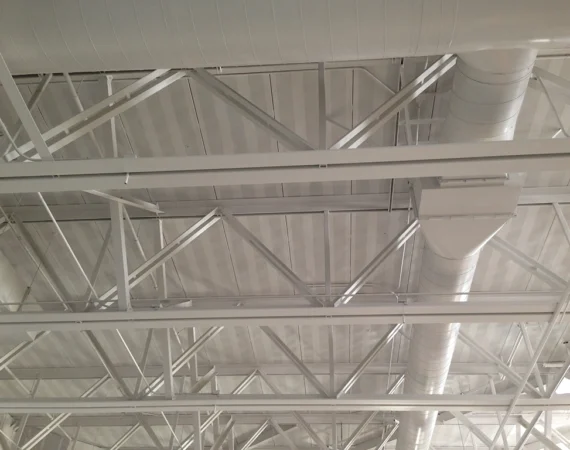

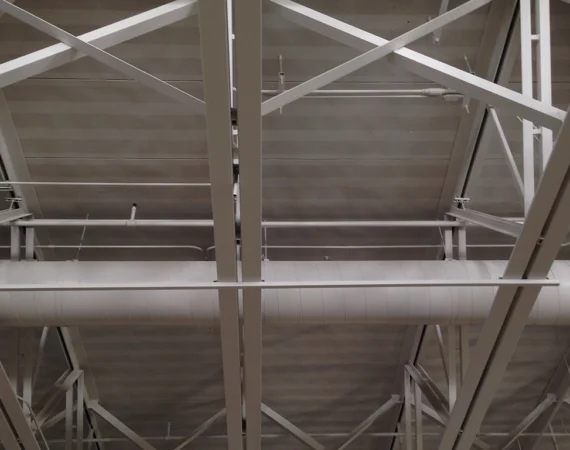

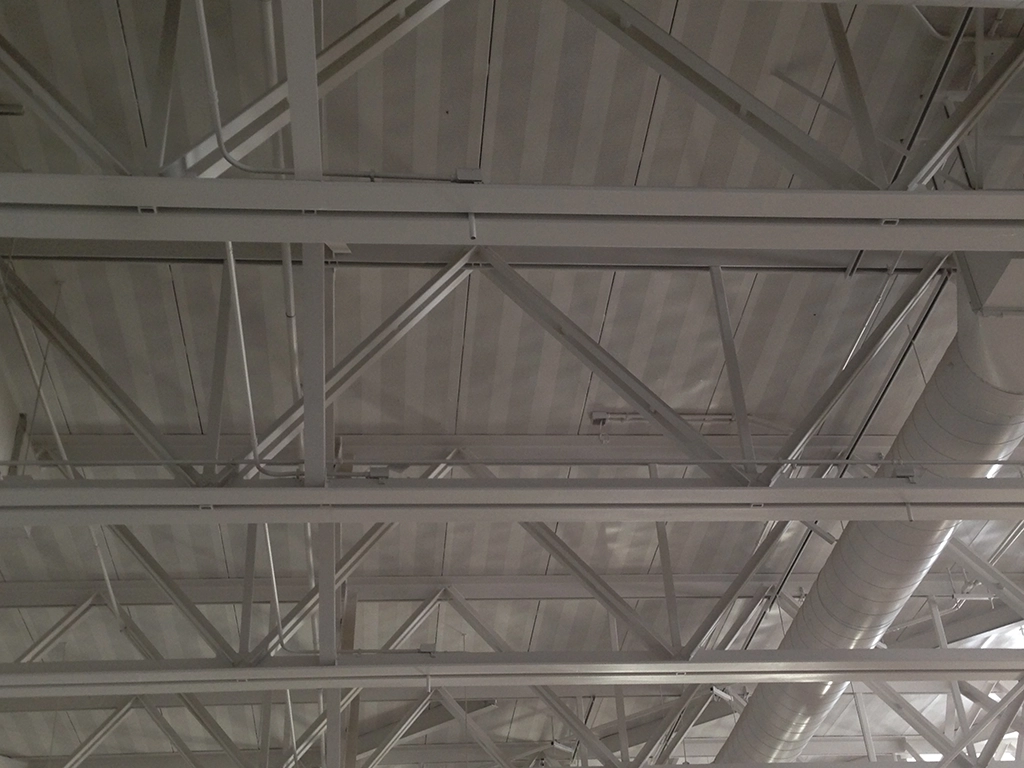

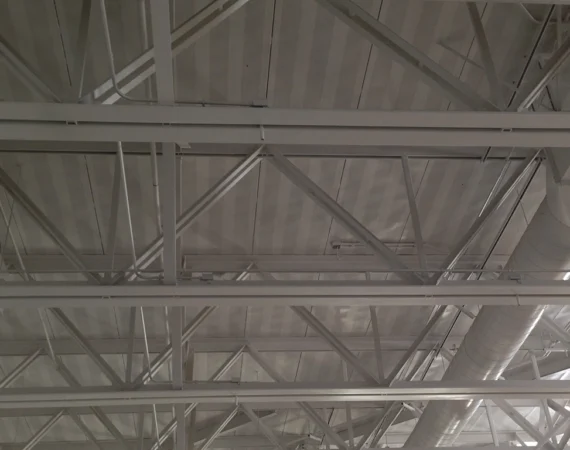

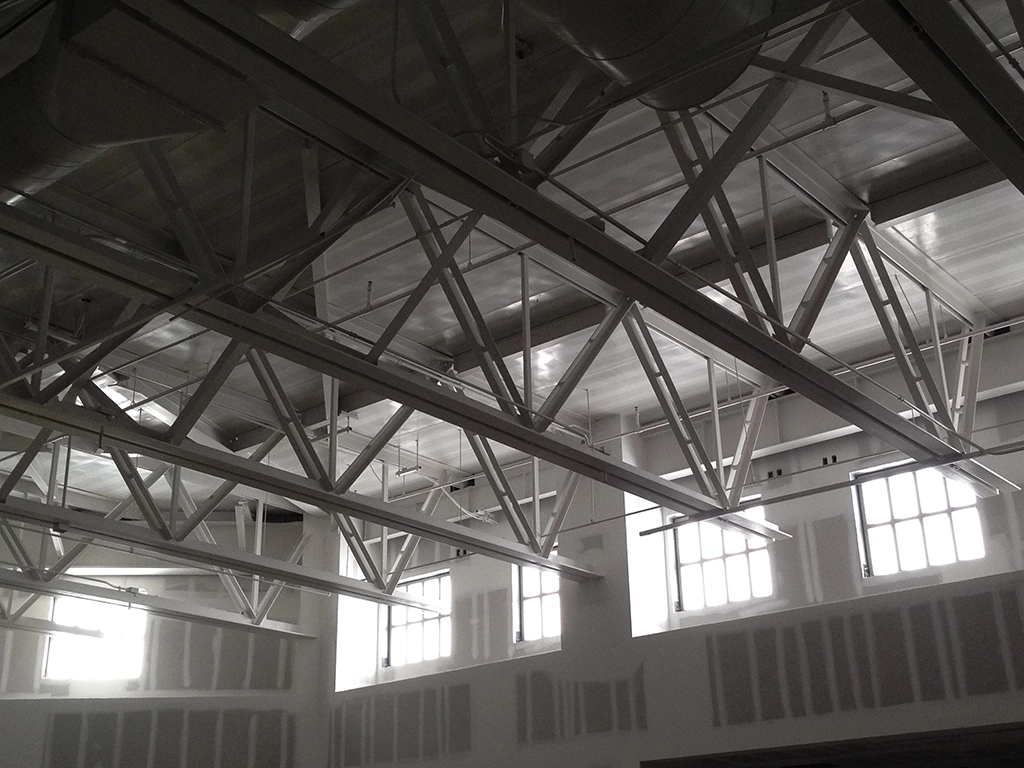

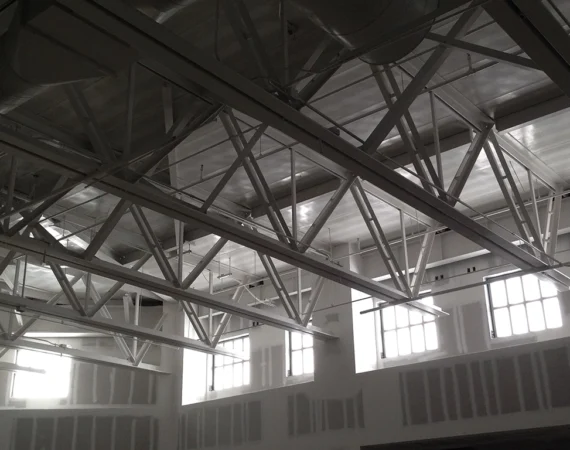

Installed Applications
