Form Deck (Non-Composite Deck)

Form deck is a non-composite deck that provides an economical, permanent base that supports concrete during the pouring and curing process. Form deck does not interlock with the concrete to form a structural composite floor system, limiting span distances between structural supports. Form deck offers the benefit of removing the time and installation hassle associated with temporary shoring systems such as wood. Form deck is good for short span conditions and for use when a metal deck is used as a leave-in-place form.

Listing Standards

  • Independently evaluated for conformance with the International Building Code by IAPMO-ES (accredited by ANSI)
  • Evaluated for fire resistance per UL 263 Fire Tests
  • Section properties are calculated in accordance with the American Iron and Steel Institute Specification for the Design of Cold-Formed Steel Structural Members, AISI S100-2016 (with 2020 supplement)
Get Started With Our Design Tool

Product Information

  • Available Length: 4'0" to 45'0"
  • Optimal Span: 2' - 7' (C0.9-32), 4' - 9' (C1.4-32)
  • Steel: 18 Ga (50ksi), 20-26Ga (80ksi)
  • Galvanized Options (per ASTM A643): G90
  • Finish Options (per ASTM 10081): Bare
  • Venting*: C09-32 Only
  • Die Set (Swedge)**: Not Available
  • Cellular Option: No
  • Acustadek® Option: Not Available

Available Configurations

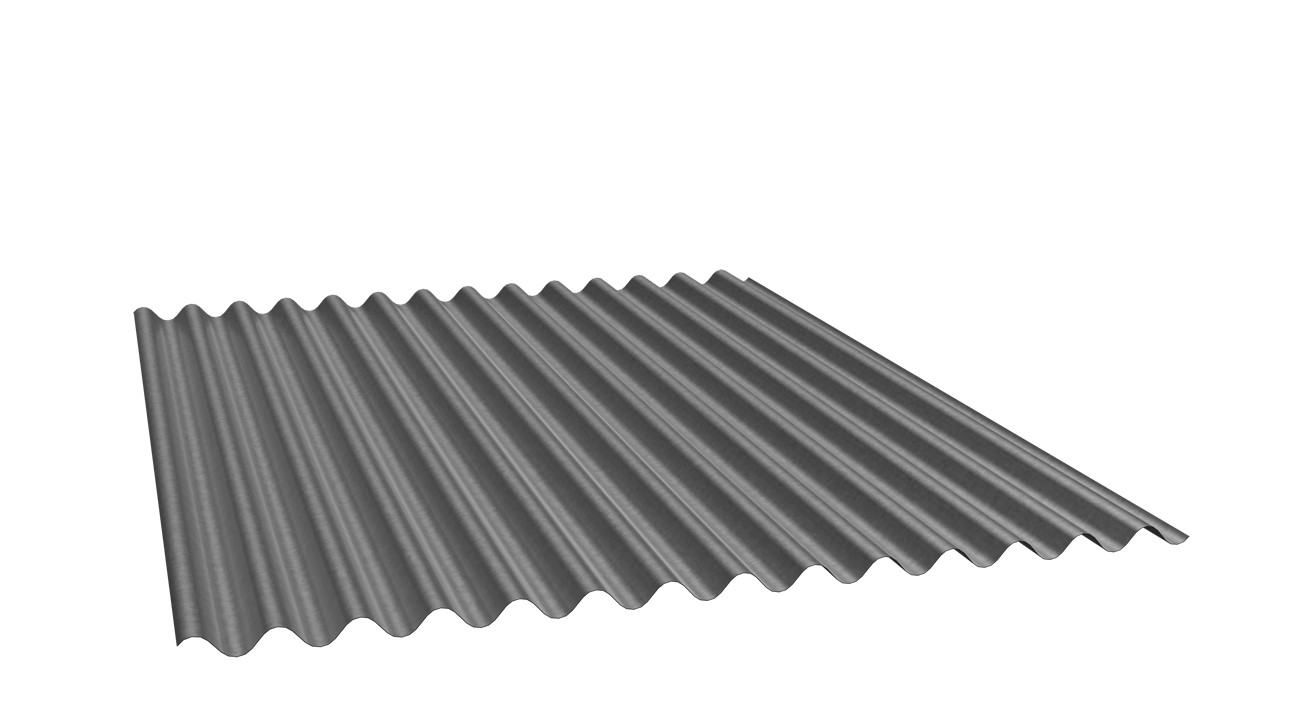

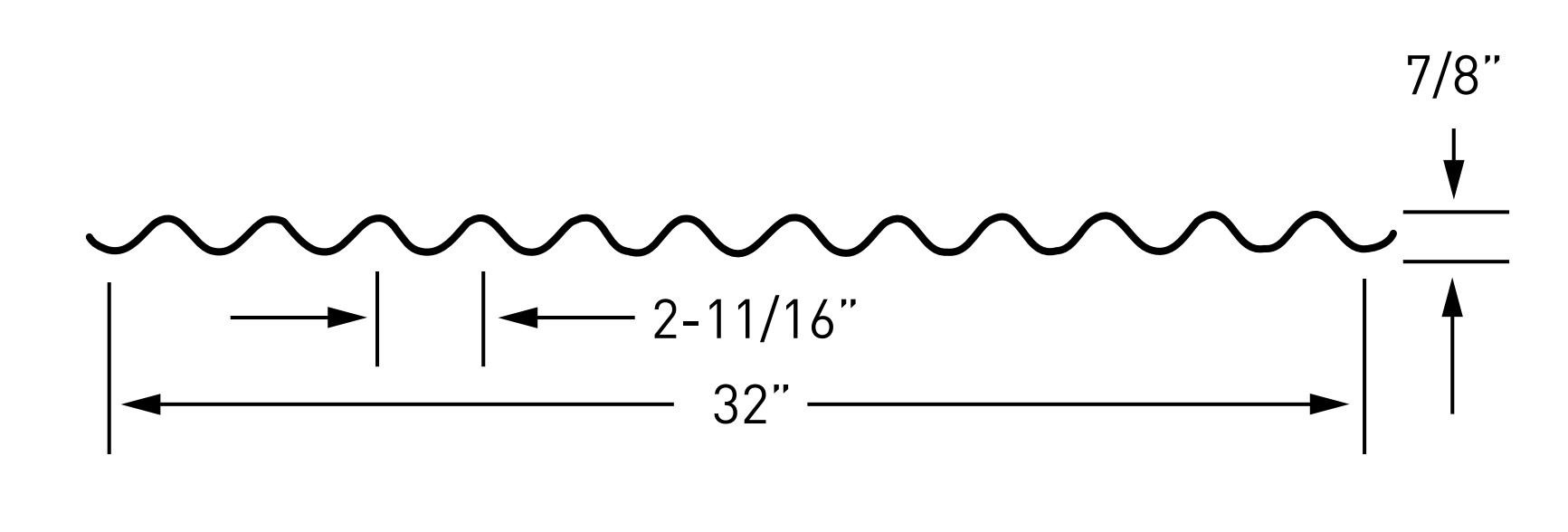

C0.9-32 (7/8" Form Deck / CF 7/8) by ASC Steel Deck on Sketchfab

A 7/8" form deck with 32" of coverage. Offers a 2 to 7 foot optimum span range.

Resources:

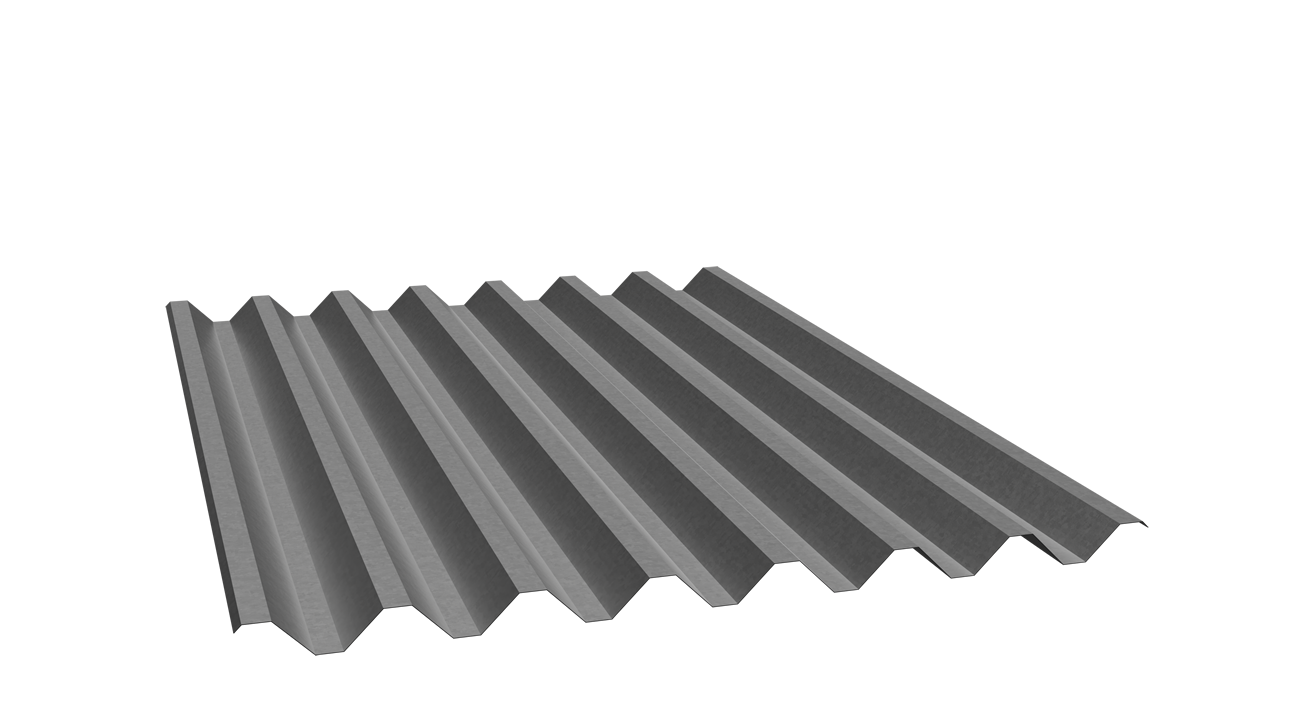

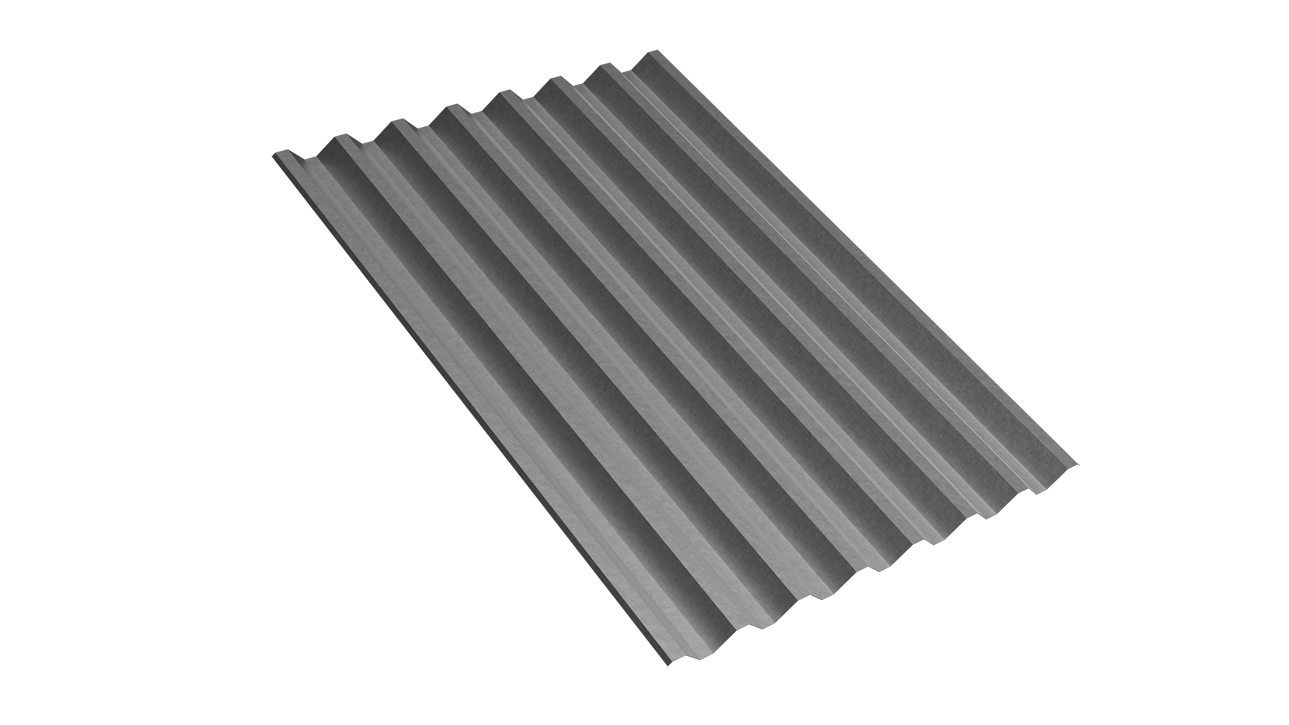

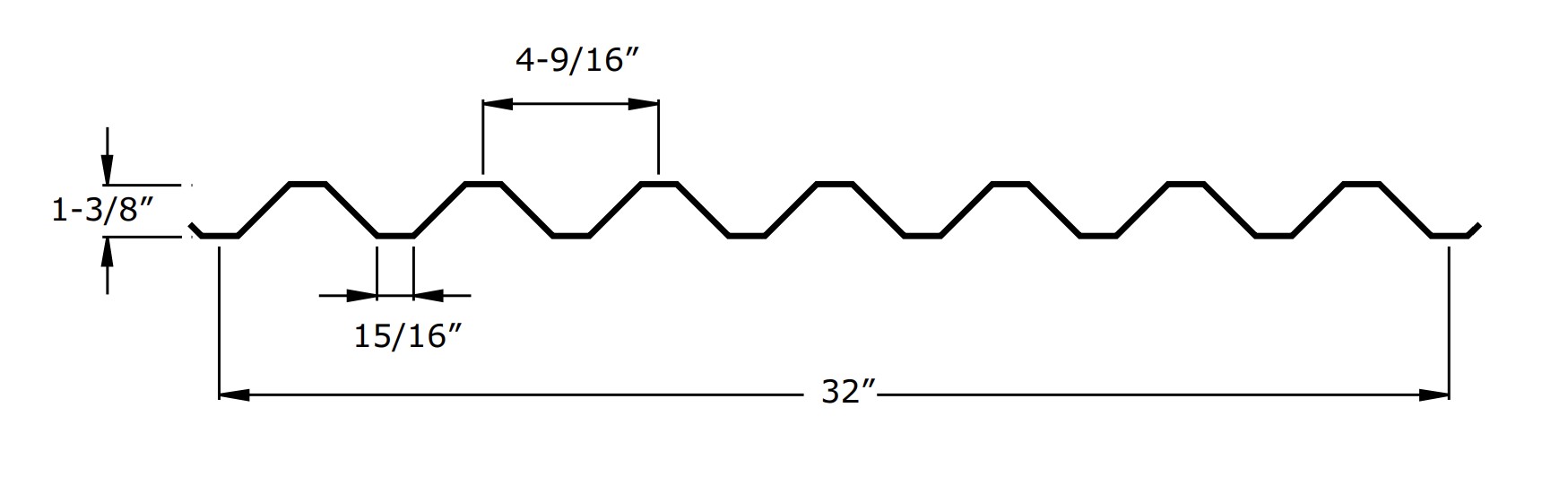

C1.4-32 (1 3/8" Form Deck / CF 1 3/8 Deck) by ASC Steel Deck on Sketchfab

A 1 3/8" form deck with 32" of coverage. Offers a 4' to 9' optimum span range.

Resources:
